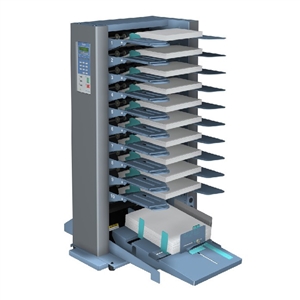

Duplo DFC-100 Collator
Duplo DFC-100 Collator



Overview:
  • Collates up to 4,200 sets per hour
  • Functions as stand-alone with a stacker
  • Configurable with a DBM-150 Bookletmaker or a DFC-S Corner/Side Stapler
  • 10 bins (available only as a single-tower configuration)
Key Applications:
  • Calendars
  • Corporate Reports
  • Catalogs
  • Brochures
  • Yearbooks
  • Magazines

Call 866-584-7812 to speak with one of our product specialists!

Please call 866-584-7812 for a free demo and pricing info.

Availability: Usually Ships in 24 to 48 Hours
Product Code: DUP-DFC-100
Please call 866-584-7812

Description


Duplo DFC-100 Collator


Available in a single tower configuration, the Duplo DFC-100 Friction Feed Collator is suitable for short run demands. Each of the 10 bins comes equipped with three feed rollers and individual sheet separator adjustments for increased accuracy and reliability. The DFC-100 feeds a variety of stocks including bond, NCR and some coated paper and also offers programmable features for greater productivity including block mode for on-the-run loading, interleave mode for separating batched sets, and a total or remaining counter for monitoring job progress.

With a collating speed of up to 4,200 sets per hour, the DFC-100 can feed in both directions - either to the right for collating and straight/offset stacking or to the left into the DBM-150 Bookletmaker (see the 150Fr Booklet System) or DFC-S Corner & Side Stapler. The DFC-S Corner & Side Stapler produces corner, counter corner, and side stapling applications up to 40 sets per minute.

Features include:

  • Collates up to 4,200 sets per hour
  • Functions as stand-alone with a stacker
  • Configurable with a DBM-150 Bookletmaker or a DFC-S Corner/Side Stapler
  • 10 bins (available only as a single-tower configuration)
  • Individual feed rollers and adjustable sheet separator in each bin
  • User-friendly control panel
  • Bi-directional feed system

Specifications:

Number of Bins: 10
Bin Capacity: Up to 1.10” (350 sheets of 64 gsm)
Paper Size: 5.83” x 8.27” – 12.60” x 17.72”
Paper Weight: 52.3-128 gsm
Speed: Up to 4,200 sets per hour
Dimensions: 33” x 25” x 40”

See product brochure for complete specifications.

Click the PDF image to the right to view the Duplo DFC-100 brochure, or right-click to download.Duplo DFC-120 Collator PDF Brochure


Please take a look at the video below to see what the Duplo DFC-100 Collator can do for you!
